Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: JT
  • Model Number: JT-775
  • Material: PE
  • Thickness: 10-250MM
  • Size: 1020*4020,1300*6100,1500*7100,1220*2440,1500*6000,2000*6000
  • color: red,black,yellow,blue white,etc.
  • molecule weight: 3 - 9 million
  • density: 1
  • size: customized
  • standard size: 1300mm*6100mm
  • thickness: 10-250mm
  • stock: white color have
  • advantages: High wear resistant, self-lubricating etc.
  • certificate: ISO 9001
  • quality: high

Packaging & Delivery

Packaging Details pallet packing,wooden box packing or as per customer's requirements.
Delivery Time 5-10days

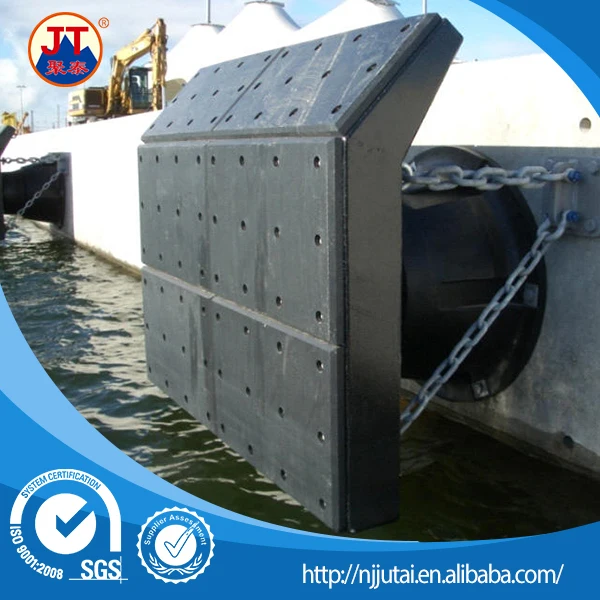

CNC machining drilled black UHMWPE marine fender pad


Product Description


Features of UHMWPE Plate

1.Non-Toxic and smell
2. Low coefficient of friction
3. Corrosion resistant
4. Abrasion and impact resistant
5. Anti-Weather and Anti-Aging
6. Self-lubricating
7. Wear Resistant
8. Great liner material for industrial material handling applications
9. UV Resistant/ultraviolet-resistance sheet
10. High Operating Temperature
11. High Tensile Strength
12. High Viscosity
13. Flame Retardant
14. Reprocessed



Application of UHMWPE Plate:

1.  Chemical Engineering: Corrosion and wear resistantance mechanical parts

2.  Thermal power: coal handling, storage of coal, warehousing chute lining

3.  Coal processing: sieve plate, filter, U-underground coal chute

4.  Concrete: cement raw and finished product silo silo lining

5.  Grain: food storage or chute lining

6.  Mining: sieve plate, chute linings, wear anti-bonding part

7.  Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide
rollers, guides, slide blocks, etc.

8. Some kind of rubber fender panels and front face of rubber fender




Standard Sheet Size

1.1020mm*4020mm*(100-250)mm

2.1300mm*6100mm*(8-150)mm

3.1500mm*7100mm*(8-150)mm

4.1220mm*2440mm*(8-150)mm

5.1500mm*6000mm*(8-200)mm

6.2000mm*6000mm*(8-200)mm

7.As per customer's requirements



Type of product molecular weight:

UHMWPE 2million molecule weight

UHMWPE 3million molecule weight

UHMWPE 5million molecule weight

UHMWPE 7million molecule weight

UHMWPE 9million molecule weight



Physical property



Property

Standard

Unit

UHMWPE

Physical Properties







Density

GB1033-86

g/cm3

0.98

Water Absorption

GB1034-86

0.01

Max Working Temperature



90

Minimum Working Temperature



-269

Mechanical Properties

Tensile Strength

GB1040-79

MPa

21

Ultimate Tensile Strength

GB1040-79

MPa

38

Elongation

GB1040-79

12

Break Elongation

GB1040-79

340

E-Modulus

GB1040-79

MPa

820

Notched Impact Strength

GB1843-80

KJ/m2

ok

Bending Strength

GB9341-88

MPa

26

Bending E-Modulus

GB9341--88

MPa

760

Compression Strength (deformation 10%)

GB1041-79

MPa

27

Compression E-Modulus

GB1041-79

MPa

550

Shear Strength

GB1041-79

MPa

33

Hadrness

GB2411-80

Shore D

65

Static Coefficient of Friction

GB10006-88

0.07-0.15

Dynamic Coefficient Friction

GB10006-88

0.07-0.11

Thermal Properties

Coefficient of Linear Expansion

GB1036-89

-1

1.5×10-4

Coefficient of Heat Conductivity ( 23  )

GB3399-82

Cal/cm sec

8.5×10-4

Special Heat ( 23 )

GB3399-82

Cal/g

0.44

Electrical Properties

Volume Resistivity

GB1410-78

Ohm cm

>1015

Surface Resistivity

GB1410-78

Ohm

>1015

Dielectric Constant ( 1MHZ )

GB1409-78

Dielectric Strength

GB1408-78

Kv/mm

70



ISO9001 Quality Certificate



Other Certificates







Packaging & Shipping



Pallet Packing

Wooden box packing


Our Services

 1.We can provide free small sample or receive small quanty sample order.

 2.We can produce OEM productions or according to customer's drawing.

 3. Warranty is at least 10 -50 years.
